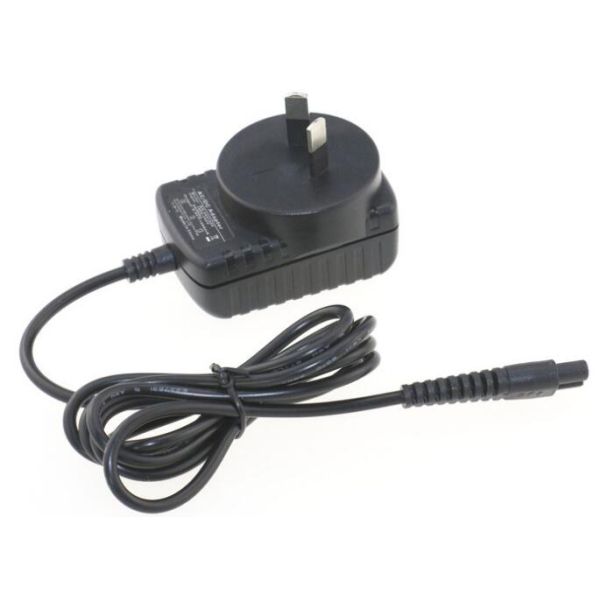

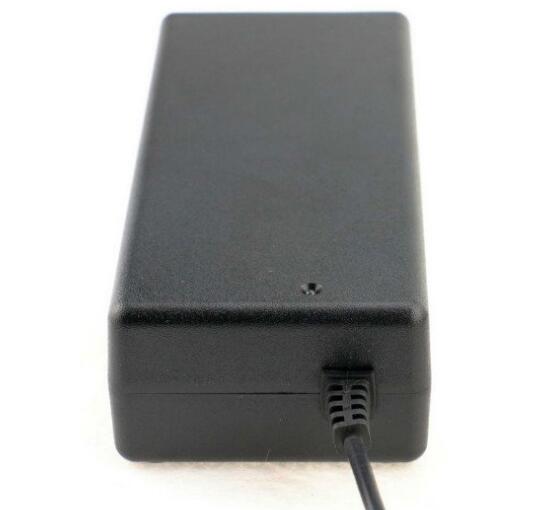

Waterproof LED power adapter supply,5V 9V 12V 24V outdoor IP68 transformer charger for CCTVs
Turn on delay time:
3Second Max.at 115Vac input and output Max.load
Efficiency: 68% Min, At 115/230Vac input voltage, full load calculation
Over current Protection:
The power supply will be auto recovered when over current faults remove.
Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~170%.
Output short circuit protection:
When the output load short-circuit, the power supply will protect, troubleshooting can resume normal work.
ENVIRONMENTAL REQUIREMET:
Operating Temperature:0℃ to 40℃,Full load, Normal operation.
| Output Power | 5w 6w 9w 10w 12W,15w.18W |
| Output Voltage | 12v |
| Output current | 0.5a,0.8a, 1a,1.2a 1.25a,1.5a |
| Plug | EU,US,UK,JP,AU plug |
| Over Voltage Protection | 120%min |
| Over Current Protection | 120%min |
| Short Circuit Protection | [Auto Recovery] |
| [Load Regulation] | +/-5% |
| Operating Temperature | 0 to 55 centigrade degree |
| Storage Temperature | -20 to 85 centigrade degree |
| Operating Relative Humidity | 5%~95% RH |
| Withstanding Voltage | AC 3000V(min),5mA(Max) |
| No-load Power Consumption | 0.3W(Max) |
| Rippel& Noise | 1% of output voltage |
| [MTBF] | 50,000hours |
| Application | LED, pumps, electronic appliances, electronic toys, the fountain and other products |
| Certificate | GS, BS, UL, CUL, CE, EMC, SAA, PSE ,KC |
Storage Temperature:-10℃ to 80℃
Relative Humidity:5%(0℃)~90%(40℃)RH,72Hrs,Full load, Normal operating.
Vibration:Operating: IEC 721-3-3 3M3 5~9Hz,A=1.5mm (9~200Hz,Acceleration 5m/S2)
Transportation: IEC 721-3-2 2M2 5-9Hz,A=3.5mm
Acceleration=5m/S2 Acceleration=15m/S2
Axes,10 cycles per axis. No permanent damage may occur during testing.
The SAMPLE has to restore to its original situation after power off/on.
SAFETY REQUIREMENT:
Safety: accord with SAA AS/NZS61347-1&61347-2-13
DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:3000Vac5mA/3S for type test.
Input Voltage: Rated Voltage:100~240Vac
Variation Range:90-264Vac
Input Frequency:Rated Frequency: 50/60Hz.
Variation Frequency:47-63Hz
Input Current:0.3Amps max At any input voltage and rated, DC output rated load.
Inrush Current:20 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient
Ac Leakage Current:0.25mA Max.At240Vac input.
